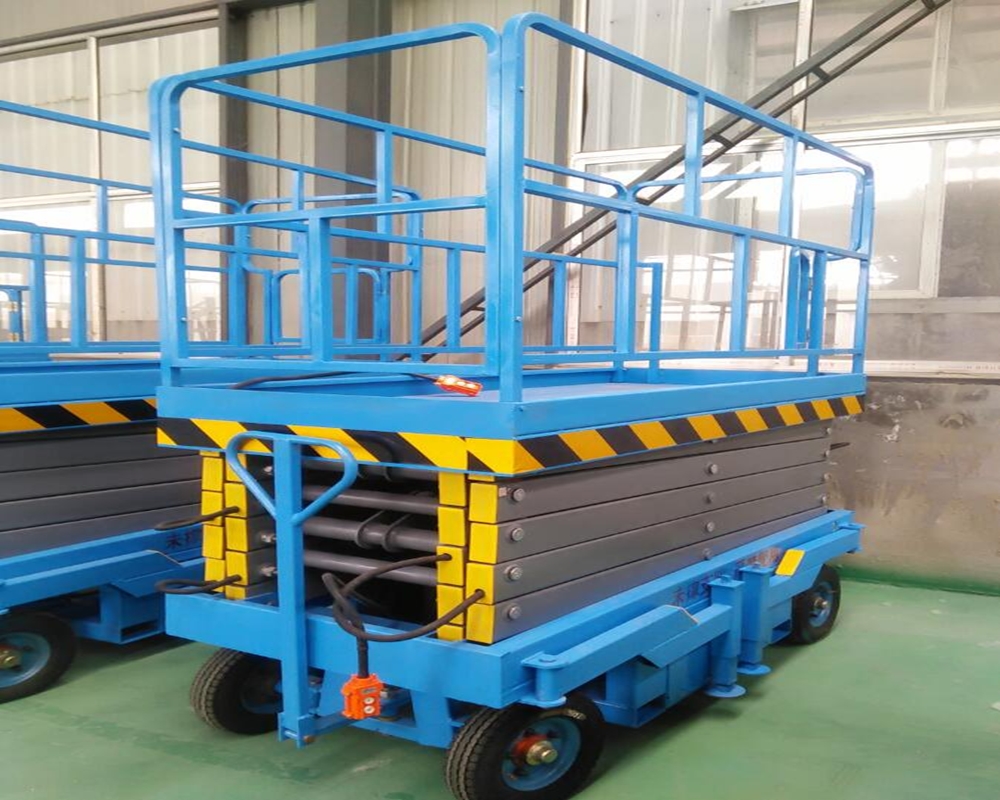

SCISSOR LIFT


Scissor lift are a classification of man lift often found in construction and facility maintenance application designed elevate workers and their tools to working heights.
We are an authorized Electric scissor lifts, Manual scissor lifts supplier and manufacturer. Today, one of the most common pieces of equipment found in rental fleets and on job sites.
Scissor lifts deliver long-lasting performance for a more productivity day. This type of aerial work platform lift is ideal for indoor maintenance or outdoor construction tasks. Electric scissor lifts have longer runtimes and promote quieter working environments. the platform lifts plenty of tools and people to height. It’s available in different working height and load capacity.

Technical Details

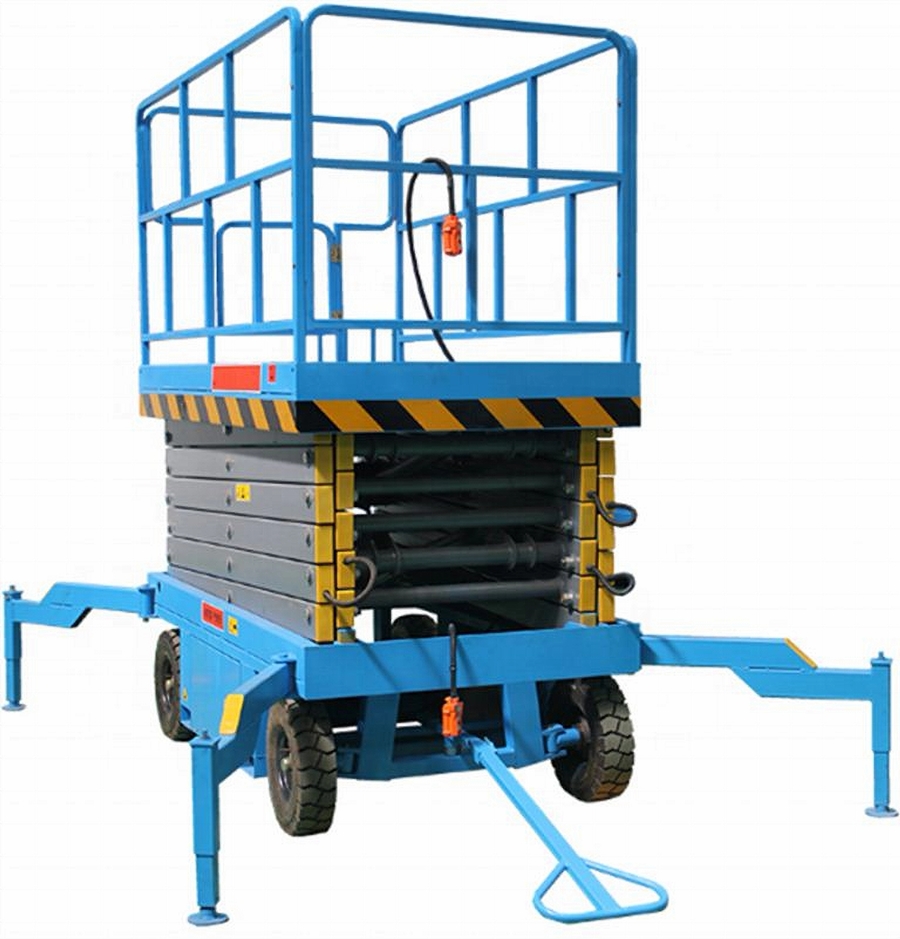

HYDRAULIC SCISSOR LIFT MANUAL

Hydraulic Scissor Lift is economic, efficient, safe, fast way to elevate workers to aerial for works such like repair, maintenance, cleaning and installation. The maximum working height is up to 18m. It is flexible to be moved by human or car.


PARAMETERS :

        Rated Capacity : 500 kg
        Platform Size : 2.1 X 0.8 m
        Platform Height : 5.0 m
        Overall Size : 2.2 X 1.0 X1.25 m
        Self-Weight : 800 kg


CONFIGURATION :

        Platform : Paved 3 mm anti-skid plastic plate
        Bearing : SF-1 self-lubricating bearing
        Hydro Cylinder : Dia 80 X 4 pcs
        Tire: 4 pcs pneumatic tire
        Hydraulic Pipe: High pressure pipe with double expanded metal protected


POWER :

        Lift Driven Power : 1.1 kw
        Voltage of Control Box : DC24V
        Input Power : 220 V; 50 hz
Technical Details

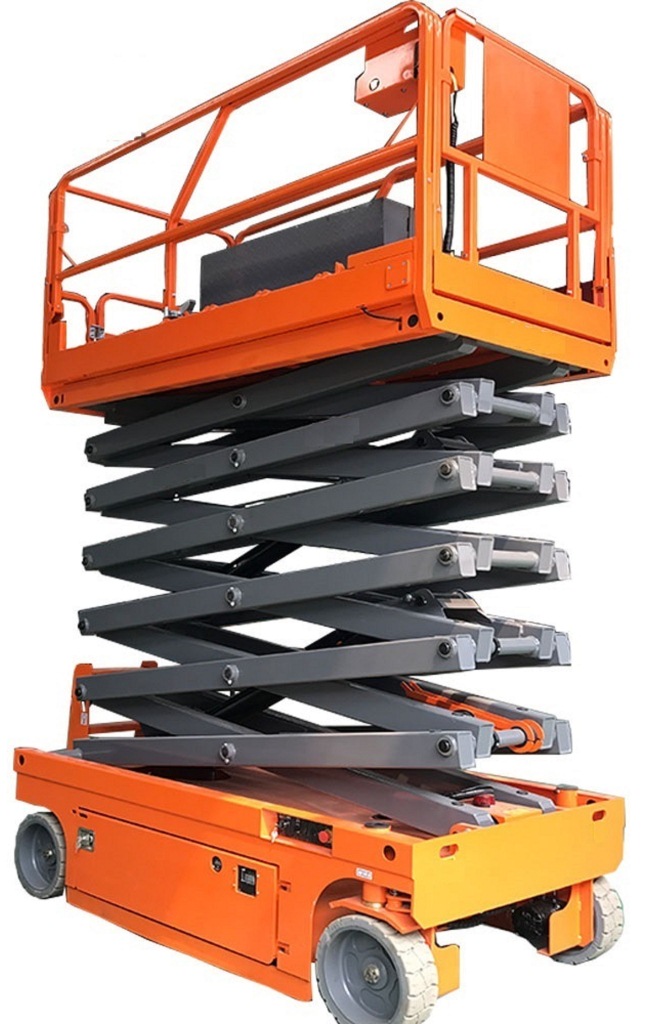

HYDRAULIC SELF- PROPLLED ELECTRIC MOBILE SCISSOR LIFT

Self-propelled Scissor Lift with automatic drive system battery or engine support power. Maximum Working height could attend to 16m. Extend platform makes the aerial work more available.

        Model : MESP-12M
        Lifting Height : 12M
        Work Height : 14M
        Rated Capacity : 230 KG
        Platform Size : 2.27 X 1.12 MM
        Extend Platform Length : 900 MM
        Machine Size : W=2.48M, D=1.15M, H=2.05M
        Charger (V/A) : 24/25
        Battery (V/Ah) : 4X6/210
